Supported Foot Pedals and Hand Controls

The Fusion Narrate client can be operated hands-free using a foot pedal.

It is not necessary to install any drivers or button mapping utilities from the microphone vendor for these foot pedals to work with Fusion Narrate. Additionally, each foot pedal can be configured from the Fusion Narrate Foot Pedal Settings menu.

The following USB foot pedal models are supported:

USB Foot Pedals

These types of foot pedals are connected to the workstation via USB cable.

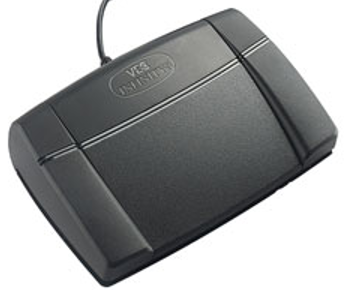

VEC / Infinity (Wide Pedal or IN-USB-3)

VEC Infinity Foot Pedal

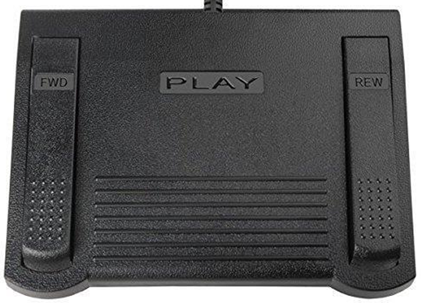

VEC / Infinity (IN-USB-1 or IN-USB-2)

VEC Infinity Foot Pedal IN-USB-1 and IN-USB-2

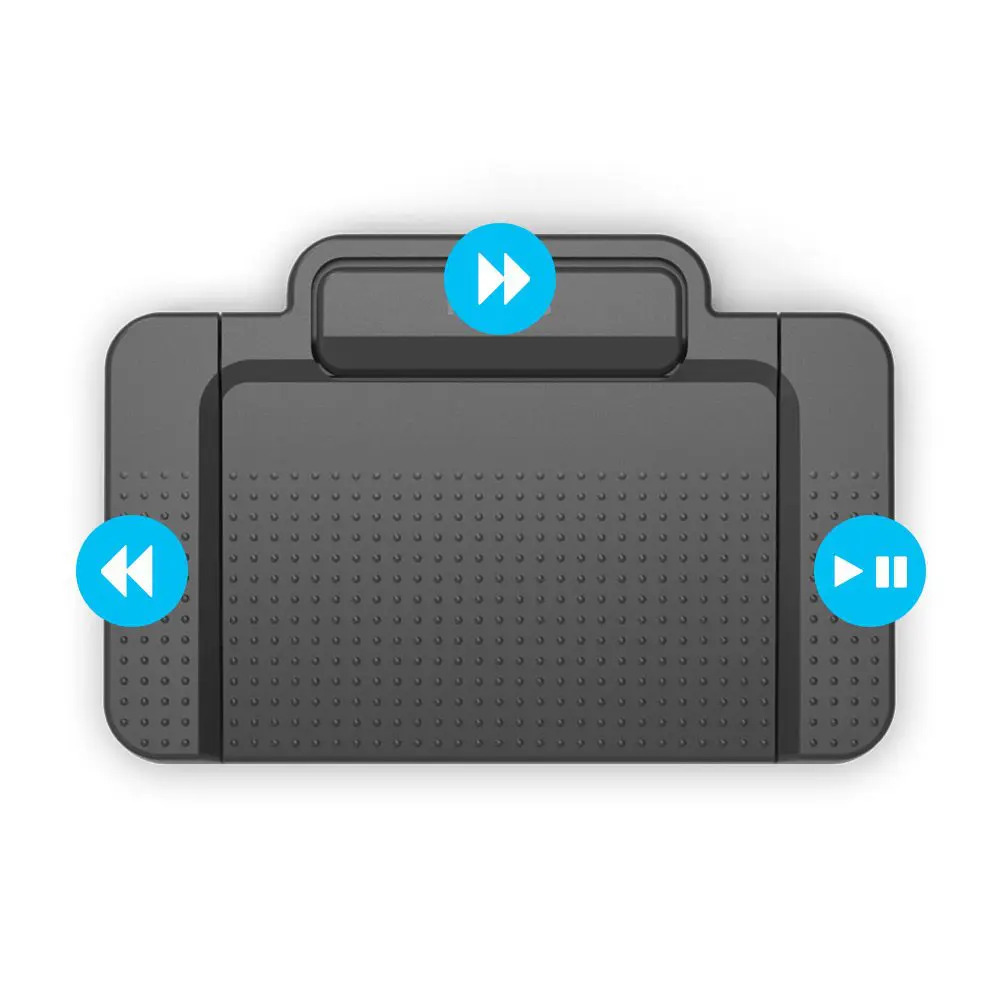

Philips ACC2310

Philips ACC2310

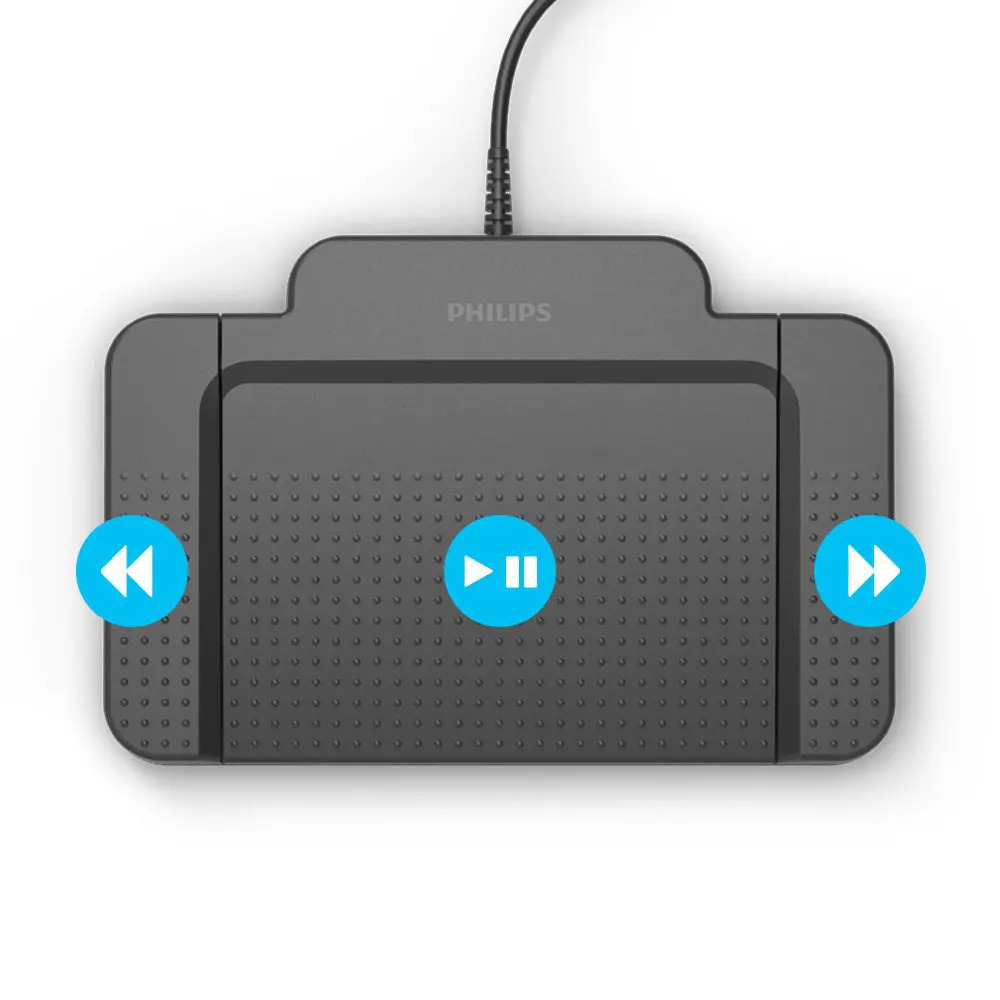

Philips ACC2320

Philips ACC2320

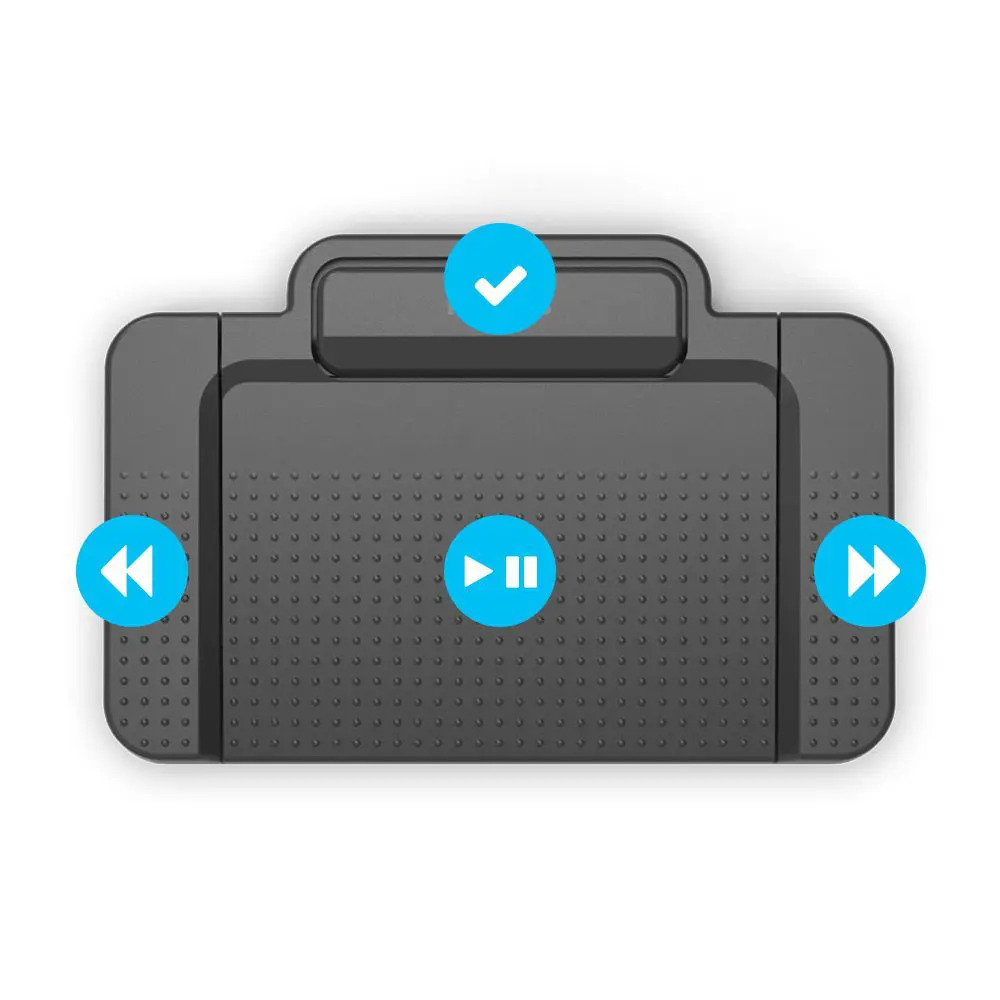

Philips ACC2330 - Enhanced 4 Pedal

Philips ACC2330

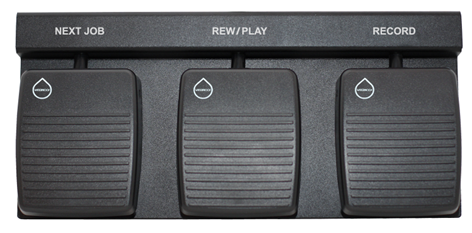

DAC FP-110-USB - 3 Pedal

DAC FP-110-USB 3 Pedal

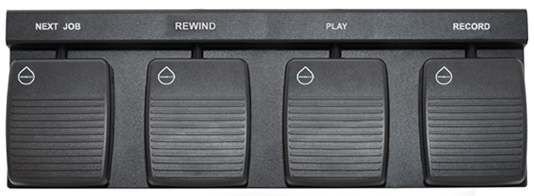

DAC FP-110-USB - 4 Pedal

DAC FP-110-USB 4 Pedal

Other foot pedal models may function with the Fusion Narrate client, depending on the similarity to one of the supported models.

Mac Foot Pedals


Users can use Fusion Narrate on MacOS through a Virtual Desktop solution such as Remote Desktop or Parallels. The following foot pedal can be used to control Fusion Narrate.

Kinesis Savant Elite 2: https://kinesis-ergo.com/products/#foot-switches

In order to control Fusion Narrate, the foot pedal events must be converted to keystrokes such as F4 and F9 using the Savant Elite2 SmartSet App.

For example, when the middle pedal is pressed it will generate an {F9} keystroke to start recording in Fusion Narrate and then when the pedal is released it will generate another {F9} keystroke to stop recording.

Hand Control


As an alternate, a hand control device exists that simulates a foot pedal.

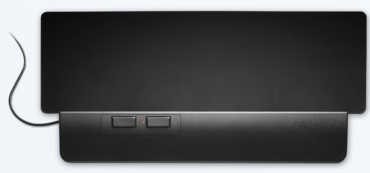

Philips Hand Control LFH2305

Philips Hand Control LFH2305
NOTES

- This device only has 2 buttons instead of the 3 or 4 typically on a foot pedal.
